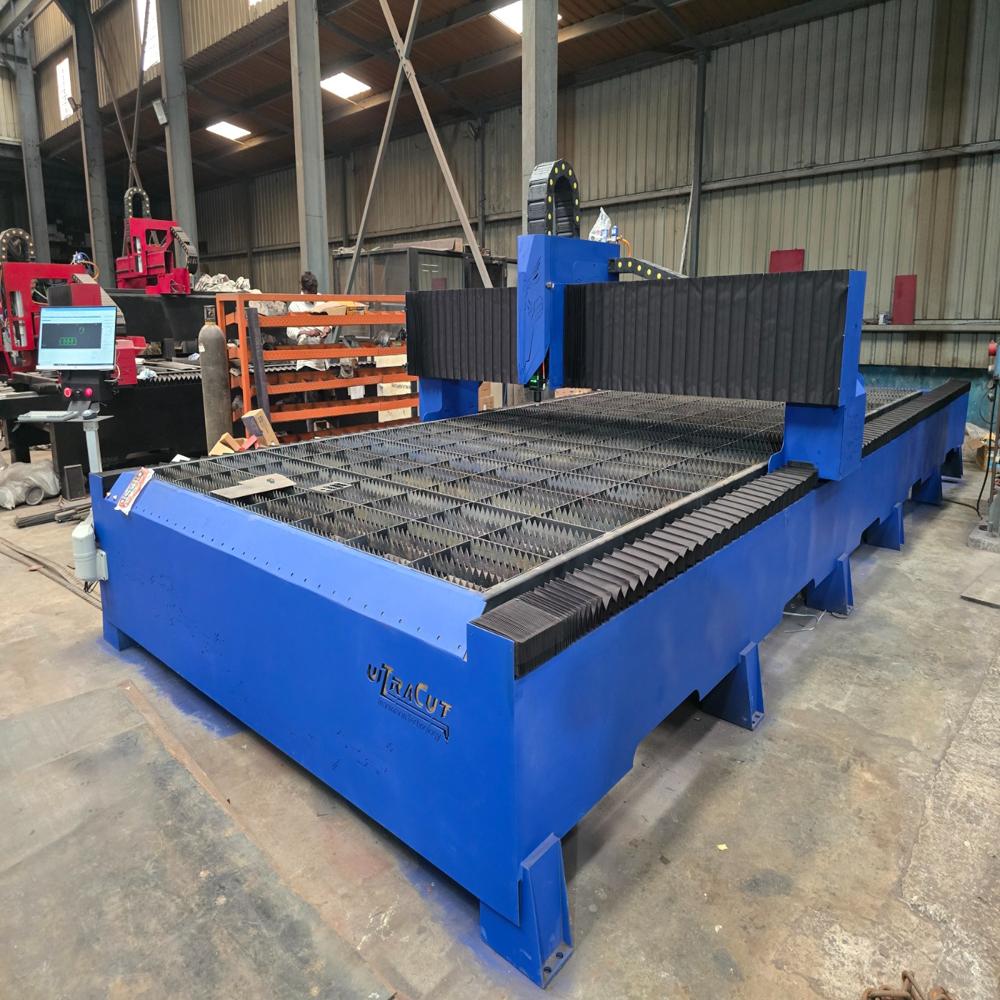

High Power Fiber Laser Cutting Machine

About High Power Fiber Laser Cutting Machine

CNC Fiber Laser Cutting Machine Specifications:

• Laser Power: Available options from 1000W to 12kW, customizable based on material and thickness requirements.
• Cutting Thickness:
  • Mild Steel: Up to 30mm
  • Stainless Steel: Up to 25mm
  • Aluminum: Up to 20mm
  • Copper & Brass: Up to 15mm (dependent on laser power)
• Cutting Speed: Up to 60 m/min, variable based on material and thickness.
• Positioning Accuracy:-/+0.03 mm.
• Repeatability:-/+0.02 mm.
• Working Area: Typically ranges from 1500mm x 3000mm to 2500mm x 8000mm (customizable).
• Control System: CNC system with user-friendly interface, supporting various file formats (DXF, DWG, etc.).
• Drive System: Servo motor with precision gear and rack drive for smooth, accurate movement.
• Cooling System: Water-cooled chiller, suitable for high-power laser sources.
• Assist Gas: Nitrogen, oxygen, or compressed air for enhanced cutting quality based on material type.
• Power Supply: 380V, 50Hz (customizable for different regions).
• Additional Features: Automatic loading and unloading options, real-time monitoring, remote diagnostic capability.
